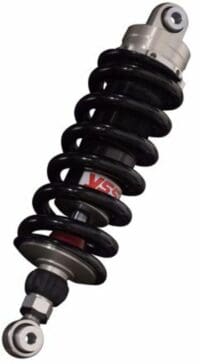

YAMAHA XT 550 1982 – 1983

Z-SERIES

MZ456-500TRL-01-85

LENGTH ADJUSTABLE ( L )

It helps increase or decrease the length of the shock absorber to +/- 5 mm.

REBOUND ADJUSTABLE

Adjustable that support and control the spring and shock absorber movement as desired, adjust the knob to control the flow of hydraulic oil through free bleed, rebound knob designed click sound when adjusted make it easier for the user.

THREADED SPRING PRELOAD

Screw spring preload ring to press the spring and tide together to lock the ring at desire position.

Technical information

• VIN code: 5Y3
• ABE: Yes
• Top: Eye 12×40
• Bottom: Eye 12×48
• Spring: 56-55-290
• Length: 500 mm
